Analytic vs Numerical Kernel#
spotgp provides two independent kernel implementations:
Class |
Method |
Speed |
|---|---|---|
|
Closed-form equations derived from the spot model physics |
Fast (JAX-compiled) |
|
Monte Carlo: simulate many lightcurves, average the autocovariance |
Slow (brute force) |
The numerical kernel serves as a ground-truth benchmark to validate the analytic derivation. This tutorial compares them for consistency and speed.
import sys
sys.path.append("../..")
import time
import numpy as np
import matplotlib.pyplot as plt
from spotgp import (
TrapezoidSymmetricEnvelope,
VisibilityFunction,
SpotEvolutionModel,
AnalyticKernel,
NumericalKernel,
)
plt.rcParams.update({
"font.size": 16, # base font size
"axes.titlesize": 20, # axes title
"axes.labelsize": 18, # x/y axis labels
"xtick.labelsize": 14, # x tick labels
"ytick.labelsize": 14, # y tick labels
"legend.fontsize": 14,
"figure.titlesize": 22, # suptitle
"axes.formatter.useoffset": False, # disable scientific notation offset
})
np.random.seed(42)
1. Define the spot model#
We use the same physical parameters for both kernels. The numerical kernel additionally requires nspot and alpha_max for the forward simulations.
# Shared physical parameters
peq = 5.0 # rotation period [days]
kappa = 0.2 # differential rotation
inc = np.pi / 2 # inclination [rad]
lspot = 10.0 # spot plateau [days]
tau_spot = 5.0 # rise/decay timescale [days]
nspot = 20 # number of spots (for numerical sims)
alpha_max = 0.1 # spot angular radius [rad]
fspot = 0.0 # spot contrast
# Build the hparam dict (accepted by both kernel constructors)
hparam = dict(
peq=peq, kappa=kappa, inc=inc,
lspot=lspot, tau_spot=tau_spot,
nspot=nspot, alpha_max=alpha_max, fspot=fspot,
)
print("Parameters:")
for k, v in hparam.items():
print(f" {k:>12s} = {v}")
Parameters:
peq = 5.0
kappa = 0.2
inc = 1.5707963267948966
lspot = 10.0
tau_spot = 5.0
nspot = 20
alpha_max = 0.1
fspot = 0.0
2. Compute both kernels#
Analytic kernel#
The analytic kernel evaluates closed-form equations — no simulations needed.
t0 = time.time()
ak = AnalyticKernel(hparam)
t_init_ak = time.time() - t0
lag = np.linspace(0, 3 * peq, 300)
t0 = time.time()
K_analytic = np.array(ak.kernel(lag))
t_eval_ak = time.time() - t0
print(f"AnalyticKernel init: {t_init_ak:.3f} s")
print(f"AnalyticKernel eval: {t_eval_ak:.3f} s ({len(lag)} points)")
AnalyticKernel init: 0.000 s
AnalyticKernel eval: 0.089 s (300 points)
Numerical kernel#
The numerical kernel simulates nsim lightcurves, computes the covariance matrix, and averages along diagonals to get the autocovariance as a function of lag.
Note
For the numerical kernel you need to sample a lot of lightcurves with a long baseline to get an accurate estimate, so we set nsim=2000 and tsim=100 * peq.
nsim = 2000
tsim = 100 * peq
tsamp = 0.05
t0 = time.time()
nk = NumericalKernel(hparam, tsim=tsim, tsamp=tsamp, nsim=nsim, verbose=False)
t_init_nk = time.time() - t0
tarr_nk, acf_nk = nk.get_acf()
# Scale numerical ACF to match analytic kernel units:
# numerical autocov is already in flux^2 units; the analytic kernel
# includes sigma_k^2, so they should match directly.
K_numerical = nk.autocov
print(f"NumericalKernel init: {t_init_nk:.3f} s ({int(nsim)} sims, {len(tarr_nk)} time steps)")
NumericalKernel init: 5.579 s (2000 sims, 10000 time steps)

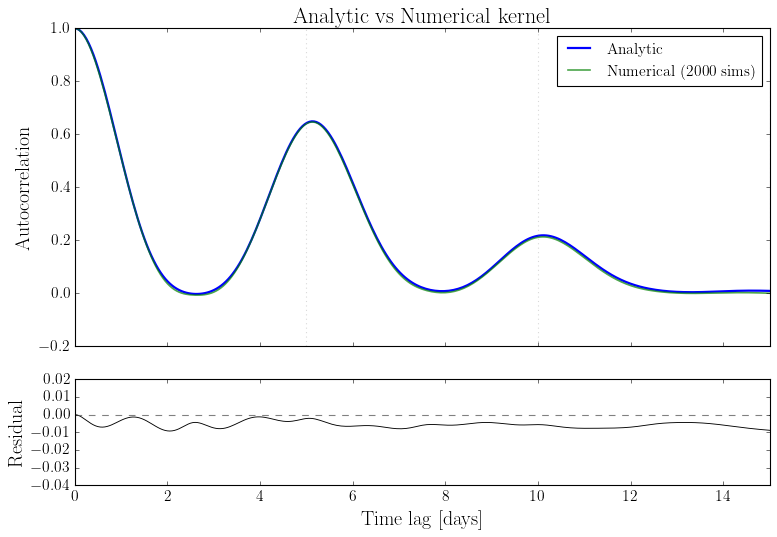

3. Compare: autocorrelation functions#
Both kernels should produce the same normalized autocorrelation function. The analytic kernel uses the exact equations while the numerical kernel estimates it from Monte Carlo simulations.
# Normalize both to ACF (divide by value at lag=0)
acf_analytic = K_analytic / K_analytic[0]
acf_numerical = acf_nk # already normalized
fig, axes = plt.subplots(2, 1, figsize=(10, 7), gridspec_kw={"height_ratios": [3, 1]}, sharex=True)
# ACF comparison
axes[0].plot(lag, acf_analytic, "C0", lw=2, label="Analytic")
axes[0].plot(tarr_nk, acf_numerical, "C1", lw=1.5, alpha=0.7,
label=f"Numerical ({int(nsim)} sims)")
for i in range(1, 4):
axes[0].axvline(i * peq, color="gray", ls=":", alpha=0.3)
axes[0].set_ylabel("Autocorrelation")
axes[0].set_title("Analytic vs Numerical kernel")
axes[0].legend()
axes[0].set_xlim(0, max(lag))
# Residuals
acf_analytic_interp = np.interp(tarr_nk, lag, acf_analytic)
residual = acf_numerical - acf_analytic_interp
axes[1].plot(tarr_nk, residual, "k", lw=0.8)
axes[1].axhline(0, color="gray", ls="--")
axes[1].set_xlabel("Time lag [days]")
axes[1].set_ylabel("Residual")
plt.tight_layout()
plt.show()
rmse = np.sqrt(np.mean(residual ** 2))
print(f"ACF RMSE: {rmse:.4f}")
ACF RMSE: 0.0187

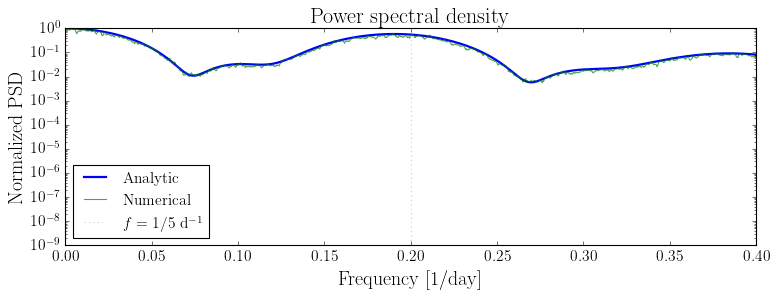

4. Compare: power spectral density#
# Analytic PSD
omega = np.linspace(0.01, 4 * np.pi / peq, 300)
freq_ak, power_ak = ak.compute_psd(omega)
# Numerical PSD (from simulated lightcurves)
freq_nk, power_nk = nk.compute_psd(nsims=min(200, int(nsim)))
fig, ax = plt.subplots(figsize=(10, 4), sharex=True)
ax.semilogy(freq_ak, np.array(power_ak) / np.max(np.array(power_ak)),
"C0", lw=2, label="Analytic")
ax.semilogy(freq_nk, power_nk / np.max(power_nk),
"C1", lw=1, alpha=0.7, label="Numerical")
# Mark rotation frequency and harmonics
f_rot = 1.0 / peq
for n in range(1, 4):
ax.axvline(n * f_rot, color="gray", ls=":", alpha=0.4,
label=f"$f = {n}/{peq:.0f}$ d$^{{-1}}$" if n == 1 else None)
ax.set_xlim(0, max(freq_ak))
ax.set_xlabel("Frequency [1/day]")
ax.set_ylabel("Normalized PSD")
ax.set_title("Power spectral density")
ax.legend(loc="lower left")
plt.tight_layout()
plt.show()
5. Speed comparison#
The analytic kernel is orders of magnitude faster because it evaluates closed-form equations rather than running Monte Carlo simulations.
# Benchmark analytic kernel: repeated evaluation
n_calls = 100
lag_bench = np.linspace(0, 3 * peq, 500)
# Warm up JAX
_ = ak.kernel(lag_bench)
t0 = time.time()
for _ in range(n_calls):
_ = ak.kernel(lag_bench)
t_analytic = (time.time() - t0) / n_calls
# Numerical kernel: time for different nsim
nsim_values = [100, 500, 1000]
t_numerical = []
for ns in nsim_values:
t0 = time.time()
_ = NumericalKernel(hparam, tsim=tsim, tsamp=tsamp, nsim=ns, verbose=False)
t_numerical.append(time.time() - t0)
print(f"{'Method':<30s} {'Time':>10s} {'Speedup':>10s}")
print("-" * 55)
print(f"{'Analytic (500 lags)':<30s} {t_analytic*1000:>8.1f} ms {'—':>10s}")
for ns, t in zip(nsim_values, t_numerical):
speedup = t / t_analytic
print(f"{'Numerical (nsim=' + str(ns) + ')':<30s} {t:>8.2f} s {speedup:>8.0f}x")
Method Time Speedup
-------------------------------------------------------
Analytic (500 lags) 88.0 ms —
Numerical (nsim=100) 0.75 s 9x
Numerical (nsim=500) 1.72 s 19x
Numerical (nsim=1000) 2.97 s 34x

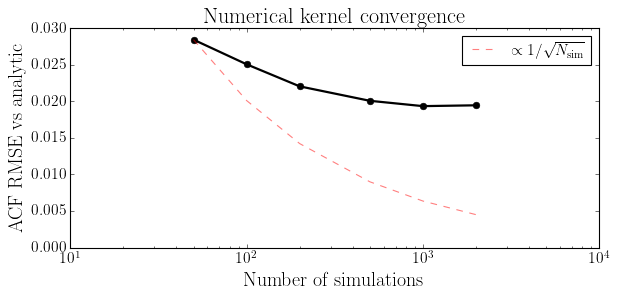

6. Convergence with number of simulations#
The numerical kernel approaches the analytic result as nsim increases. How many simulations are needed for a given accuracy?
nsim_grid = [50, 100, 200, 500, 1000, 2000]
rmse_list = []
for ns in nsim_grid:
nk_test = NumericalKernel(hparam, tsim=tsim, tsamp=tsamp, nsim=ns, verbose=False)
acf_test = nk_test.autocov / nk_test.autocov[0]
acf_ref = np.interp(nk_test.tarr, lag, acf_analytic)
rmse_list.append(np.sqrt(np.mean((acf_test - acf_ref) ** 2)))
fig, ax = plt.subplots(figsize=(8, 4))
ax.semilogx(nsim_grid, rmse_list, "ko-", lw=2)
ax.set_xlabel("Number of simulations")
ax.set_ylabel("ACF RMSE vs analytic")
ax.set_title("Numerical kernel convergence")
# Expected scaling: RMSE ~ 1/sqrt(nsim)
ns_ref = np.array(nsim_grid, dtype=float)
scale = rmse_list[0] * np.sqrt(nsim_grid[0])
ax.semilogx(ns_ref, scale / np.sqrt(ns_ref), "r--", alpha=0.5,
label=r"$\propto 1/\sqrt{N_{\rm sim}}$")
ax.legend()
plt.tight_layout()
plt.show()

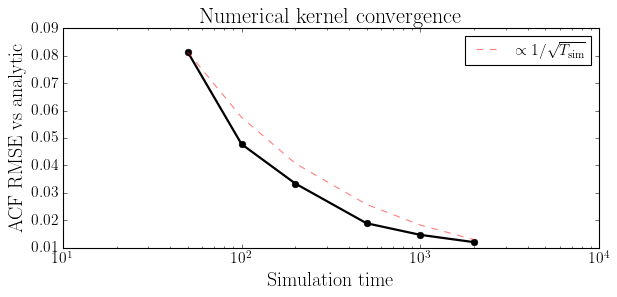

What about for tsim?
tsim_grid = [50, 100, 200, 500, 1000, 2000]
rmse_list = []
for tsim in tsim_grid:
nk_test = NumericalKernel(hparam, tsim=tsim, tsamp=tsamp, nsim=1000, verbose=False)
acf_test = nk_test.autocov / nk_test.autocov[0]
acf_ref = np.interp(nk_test.tarr, lag, acf_analytic)
rmse_list.append(np.sqrt(np.mean((acf_test - acf_ref) ** 2)))
fig, ax = plt.subplots(figsize=(8, 4))
ax.semilogx(tsim_grid, rmse_list, "ko-", lw=2)
ax.set_xlabel("Simulation time")
ax.set_ylabel("ACF RMSE vs analytic")
ax.set_title("Numerical kernel convergence")
# Expected scaling: RMSE ~ 1/sqrt(tsim)
ts_ref = np.array(tsim_grid, dtype=float)
scale = rmse_list[0] * np.sqrt(tsim_grid[0])
ax.semilogx(ts_ref, scale / np.sqrt(ts_ref), "r--", alpha=0.5,
label=r"$\propto 1/\sqrt{T_{\rm sim}}$")
ax.legend()
plt.tight_layout()
plt.show()
Note
To achieve better accuracy with the numerical kernel, increasing tsim matters more than increasing nsim.
7. Effect of differential rotation#

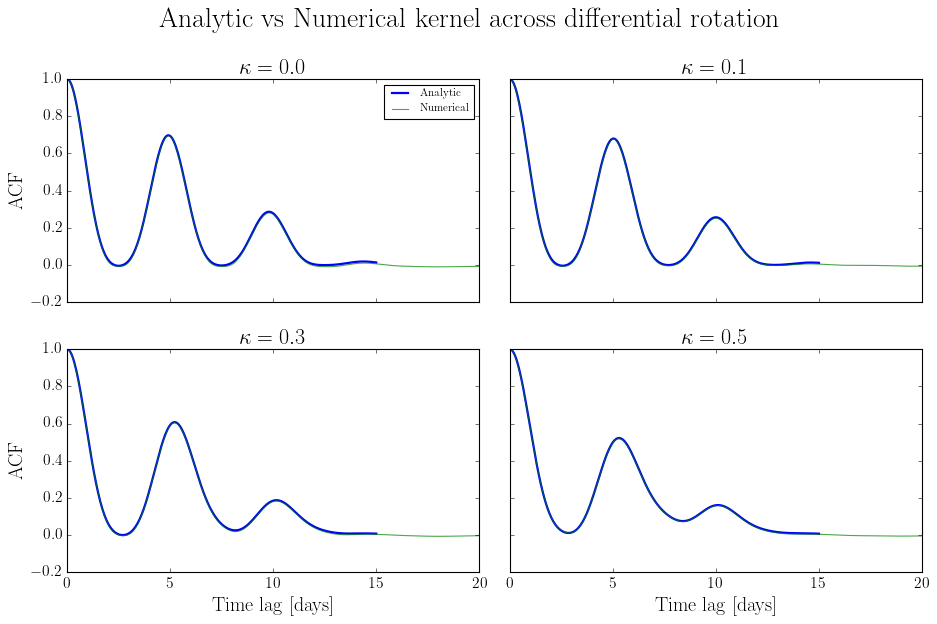

Compare the two kernels across different values of the differential rotation parameter \(\kappa\) to verify consistency beyond the default case.
kappa_values = [0.0, 0.1, 0.3, 0.5]
fig, axes = plt.subplots(2, 2, figsize=(12, 8), sharex=True, sharey=True)
for ax, kap in zip(axes.flat, kappa_values):
hp = dict(hparam, kappa=kap)
# Analytic
ak_k = AnalyticKernel(hp)
K_ak = np.array(ak_k.kernel(lag))
acf_ak = K_ak / K_ak[0]
# Numerical
nk_k = NumericalKernel(hp, tsim=1000, tsamp=tsamp, nsim=1000, verbose=False)
acf_nk_k = nk_k.autocov / nk_k.autocov[0]
ax.plot(lag, acf_ak, "C0", lw=2, label="Analytic")
ax.plot(nk_k.tarr, acf_nk_k, "C1", lw=1, alpha=0.7, label="Numerical")
ax.set_title(rf"$\kappa = {kap}$")
ax.set_xlim(0, 4*peq)
if ax in axes[:, 0]:
ax.set_ylabel("ACF")
if ax in axes[1, :]:
ax.set_xlabel("Time lag [days]")
axes[0, 0].legend(fontsize=10)
plt.suptitle("Analytic vs Numerical kernel across differential rotation", fontsize=25)
plt.tight_layout()
plt.show()
Summary#
Analytic |
Numerical |
|
|---|---|---|
Method |
Closed-form \(R_\Gamma \times\) Fourier visibility |
Monte Carlo autocovariance |
Speed |
Milliseconds |
Seconds to minutes |
Accuracy |
Exact (small-spot limit) |
Converges as \(1/\sqrt{T_{\rm sim}}\) |
Differentiable |
Yes (JAX autodiff) |
No |
Use case |
Inference (GP fitting, MCMC) |
Validation and benchmarking |
The analytic kernel is the right choice for inference. The numerical kernel is useful for:
Validating the analytic derivation against brute-force simulations
Checking regimes where the small-spot approximation may break down
Building intuition about how parameters affect the lightcurve statistics
