Custom Spot Property Distributions#
By default, spotgp kernel parameters (sigma_k, lspot, tau_spot) are fixed scalars. This tutorial shows how to replace any parameter with a ParameterDistribution, which causes the kernel to marginalize (integrate) over it automatically.
This is useful when:
Spot properties vary across a stellar surface (e.g. different spot lifetimes at different latitudes)
You want the kernel to reflect population-level uncertainty in a parameter
You want a smoother kernel that averages over a range of spot sizes or lifetimes
import sys
sys.path.append("../..")
import numpy as np
import jax.numpy as jnp
import matplotlib.pyplot as plt
from spotgp import (
ParameterDistribution,
DeltaDistribution,
UniformDistribution,
GaussianDistribution,
LogNormalDistribution,
as_distribution,
is_distributed,
TrapezoidSymmetricEnvelope,
VisibilityFunction,
SpotEvolutionModel,
AnalyticKernel,
)
plt.rcParams.update({
"font.size": 16, # base font size
"axes.titlesize": 20, # axes title
"axes.labelsize": 18, # x/y axis labels
"xtick.labelsize": 14, # x tick labels
"ytick.labelsize": 14, # y tick labels
"legend.fontsize": 14,
"figure.titlesize": 22, # suptitle
"axes.formatter.useoffset": False, # disable scientific notation offset
})
1. Available distributions#
Four built-in distributions are provided:
Class |
Parameters |
Use case |
|---|---|---|
|
Fixed scalar |
Default (wraps a float) |
|
Bounds |
Unknown parameter within a range |
|
Mean, std |
Well-constrained parameter |
|
Log-mean, log-std |
Positive parameters with skew |
Each distribution has a mean, support, expectation(func), and sympy_pdf().

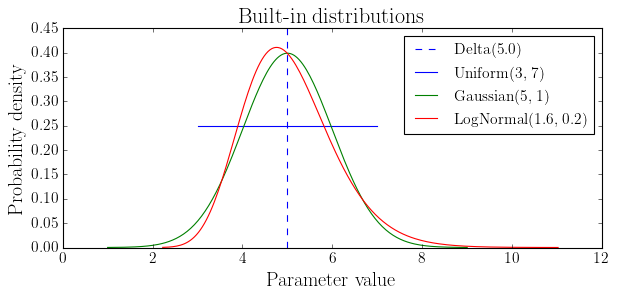

dists = {
"Delta(5.0)": DeltaDistribution(5.0),
"Uniform(3, 7)": UniformDistribution(3.0, 7.0),
"Gaussian(5, 1)": GaussianDistribution(5.0, 1.0),
"LogNormal(1.6, 0.2)": LogNormalDistribution(1.6, 0.2),
}
fig, ax = plt.subplots(figsize=(8, 4))
for name, d in dists.items():
lo, hi = d.support
if lo == hi: # Delta
ax.axvline(lo, ls="--", label=name)
continue
x = np.linspace(lo, hi, 200)
pdf = np.array([d(xi) for xi in x])
pdf = pdf / np.trapezoid(pdf, x) # normalize for plotting
ax.plot(x, pdf, label=name)
ax.set_xlabel("Parameter value")
ax.set_ylabel("Probability density")
ax.set_title("Built-in distributions")
ax.legend()
plt.tight_layout()
plt.show()
Sympy expressions#
Each distribution can display its PDF as a LaTeX equation:
GaussianDistribution(5.0, 1.0).get_sympy(var_name=r"\tau_{\rm spot}")
LogNormalDistribution(1.6, 0.2).get_sympy(var_name=r"\sigma_k")
{'pdf': 2.5*sqrt(2)*exp(-(5.0*log(x) - 8.0)**2/2)/(sqrt(pi)*x)}
Computing expectations#
The expectation(func) method computes \(E[f(x)]\) under the distribution via Gauss-Legendre quadrature:
d = GaussianDistribution(mu=5.0, sigma=1.0)
print(f"E[x] = {d.expectation(lambda x: x):.4f} (analytic: {d.mean:.4f})")
print(f"E[x^2] = {d.expectation(lambda x: x**2):.4f} (analytic: {5**2 + 1**2:.4f})")
print(f"Var[x] = {d.expectation(lambda x: (x - d.mean)**2):.4f} (analytic: {1**2:.4f})")
E[x] = 5.0000 (analytic: 5.0000)
E[x^2] = 25.9989 (analytic: 26.0000)
Var[x] = 0.9989 (analytic: 1.0000)
2. Distributed sigma_k — amplitude uncertainty#
The kernel amplitude sigma_k appears as a prefactor:
When sigma_k is a distribution, the kernel replaces \(\sigma_k^2\) with \(E[\sigma_k^2]\). For a Gaussian with mean \(\mu\) and std \(\sigma\):
This is exact and analytic — no numerical integration needed.
env = TrapezoidSymmetricEnvelope(lspot=10.0, tau_spot=3.0)
vis = VisibilityFunction(peq=8.0, kappa=0.2, inc=np.pi / 3)
# Fixed sigma_k
model_fixed = SpotEvolutionModel(envelope=env, visibility=vis, sigma_k=0.01)
# Distributed sigma_k: same mean, but with spread
model_dist = SpotEvolutionModel(
envelope=env, visibility=vis,
sigma_k=GaussianDistribution(mu=0.01, sigma=0.003),
)
print(f"Fixed: sigma_k = {model_fixed.sigma_k}, E[sigma_k^2] = {model_fixed.sigma_k_sq_expected:.2e}")
print(f"Distributed: sigma_k = {model_dist.sigma_k}, E[sigma_k^2] = {model_dist.sigma_k_sq_expected:.2e}")
print(f"Ratio: {model_dist.sigma_k_sq_expected / model_fixed.sigma_k_sq_expected:.3f}")
Fixed: sigma_k = 0.01, E[sigma_k^2] = 1.00e-04
Distributed: sigma_k = 0.01, E[sigma_k^2] = 1.09e-04
Ratio: 1.090
lag = np.linspace(0, 3 * 8.0, 300)
K_fixed = AnalyticKernel(model_fixed).kernel(lag)
K_dist = AnalyticKernel(model_dist).kernel(lag)
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(lag, np.array(K_fixed), label=r"Fixed $\sigma_k = 0.01$")
ax.plot(lag, np.array(K_dist), "--", label=r"$\sigma_k \sim \mathcal{N}(0.01, 0.003)$")
ax.set_xlabel("Time lag [days]")
ax.set_ylabel(r"$K(\tau)$")
ax.set_title(r"Effect of distributing $\sigma_k$: shape unchanged, amplitude scales")
ax.legend()
plt.tight_layout()
plt.show()
The kernel shape is identical — only the amplitude changes by the factor \(E[\sigma_k^2] / \sigma_k^2 = 1 + (\sigma/\mu)^2\).

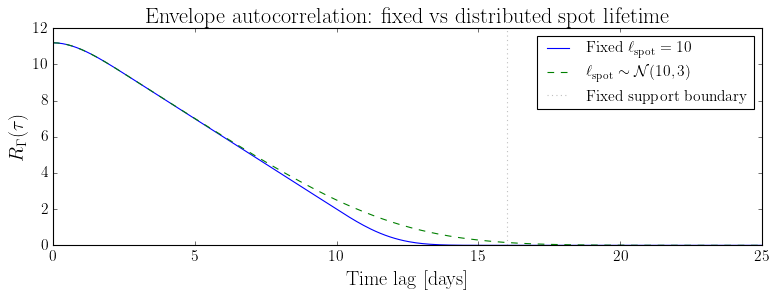

3. Distributed lspot — spot lifetime variability#
The plateau duration lspot appears nonlinearly inside the envelope autocorrelation \(R_\Gamma(\tau)\). Marginalizing over a distribution of lspot produces a mixture of autocorrelations, which smooths the sharp cutoff at lspot + 2*tau_spot.
env_fixed = TrapezoidSymmetricEnvelope(lspot=10.0, tau_spot=3.0)
env_dist = TrapezoidSymmetricEnvelope(
lspot=GaussianDistribution(mu=10.0, sigma=3.0),
tau_spot=3.0,
)
lag = np.linspace(0, 25, 300)
R_fixed = np.array(env_fixed.R_Gamma(lag))
R_dist = np.array(env_dist.R_Gamma(lag))
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(lag, R_fixed, label=r"Fixed $\ell_{\rm spot} = 10$")
ax.plot(lag, R_dist, "--", label=r"$\ell_{\rm spot} \sim \mathcal{N}(10, 3)$")
ax.axvline(10 + 2*3, color="gray", ls=":", alpha=0.5, label="Fixed support boundary")
ax.set_xlabel("Time lag [days]")
ax.set_ylabel(r"$R_\Gamma(\tau)$")
ax.set_title("Envelope autocorrelation: fixed vs distributed spot lifetime")
ax.legend()
plt.tight_layout()
plt.show()
The distributed version has a smoother tail — the sharp cutoff at lspot + 2*tau_spot is blurred because different lspot values contribute at different lag ranges.

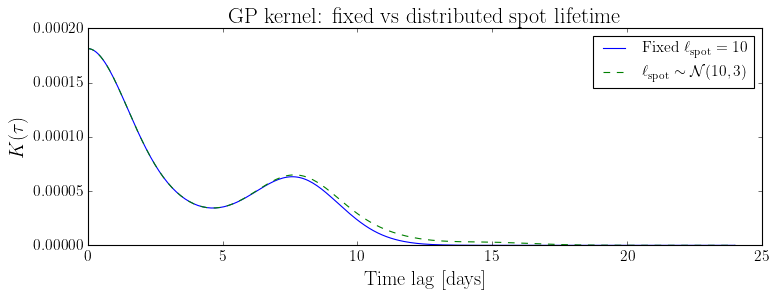

Effect on the full kernel#
vis = VisibilityFunction(peq=8.0, kappa=0.2, inc=np.pi / 3)
model_fixed = SpotEvolutionModel(envelope=env_fixed, visibility=vis, sigma_k=0.01)
model_dist = SpotEvolutionModel(envelope=env_dist, visibility=vis, sigma_k=0.01)
lag = np.linspace(0, 3 * 8.0, 300)
K_fixed = np.array(AnalyticKernel(model_fixed).kernel(lag))
K_dist = np.array(AnalyticKernel(model_dist).kernel(lag))
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(lag, K_fixed, label=r"Fixed $\ell_{\rm spot} = 10$")
ax.plot(lag, K_dist, "--", label=r"$\ell_{\rm spot} \sim \mathcal{N}(10, 3)$")
ax.set_xlabel("Time lag [days]")
ax.set_ylabel(r"$K(\tau)$")
ax.set_title("GP kernel: fixed vs distributed spot lifetime")
ax.legend()
plt.tight_layout()
plt.show()

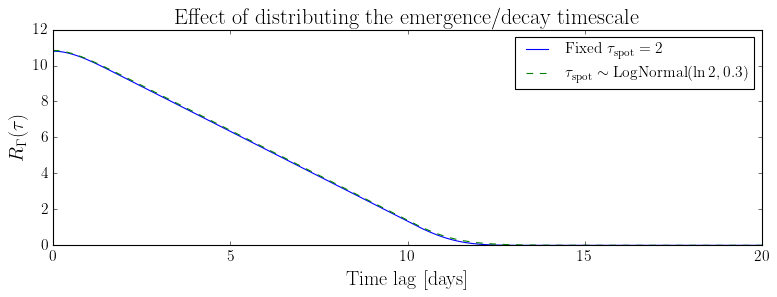

4. Distributed tau_spot — emergence/decay timescale spread#
Similarly, distributing tau_spot broadens the transition between the plateau and zero correlation:
env_fixed = TrapezoidSymmetricEnvelope(lspot=10.0, tau_spot=2.0)
env_tau_dist = TrapezoidSymmetricEnvelope(
lspot=10.0,
tau_spot=LogNormalDistribution(mu=np.log(2.0), sigma=0.3),
)
lag = np.linspace(0, 20, 300)
R_fixed = np.array(env_fixed.R_Gamma(lag))
R_tau = np.array(env_tau_dist.R_Gamma(lag))
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(lag, R_fixed, label=r"Fixed $\tau_{\rm spot} = 2$")
ax.plot(lag, R_tau, "--",
label=r"$\tau_{\rm spot} \sim \mathrm{LogNormal}(\ln 2, 0.3)$")
ax.set_xlabel("Time lag [days]")
ax.set_ylabel(r"$R_\Gamma(\tau)$")
ax.set_title("Effect of distributing the emergence/decay timescale")
ax.legend()
plt.tight_layout()
plt.show()
5. Combining multiple distributed parameters#
All distributable parameters can be combined freely:
model_all = SpotEvolutionModel(
envelope=TrapezoidSymmetricEnvelope(
lspot=GaussianDistribution(mu=10.0, sigma=2.0),
tau_spot=LogNormalDistribution(mu=np.log(3.0), sigma=0.3),
),
visibility=VisibilityFunction(peq=8.0, kappa=0.2, inc=np.pi / 3),
sigma_k=GaussianDistribution(mu=0.01, sigma=0.003),
)
# The model reports means for backward compat
print("Model parameters (means):")
print(f" sigma_k = {model_all.sigma_k:.4f}")
print(f" lspot = {model_all.lspot:.1f}")
print(f" tau_spot = {model_all.tau_spot:.2f}")
print(f" E[sigma_k^2] = {model_all.sigma_k_sq_expected:.2e}")
print()
# Check which parameters are distributions
print("Distributed parameters:")
print(f" sigma_k: {is_distributed(model_all.sigma_k_distribution)}")
print(f" lspot: {is_distributed(model_all.envelope.lspot_distribution)}")
print(f" tau_spot: {is_distributed(model_all.envelope.tau_spot_distribution)}")
Model parameters (means):
sigma_k = 0.0100
lspot = 10.0
tau_spot = 3.14
E[sigma_k^2] = 1.09e-04
Distributed parameters:
sigma_k: True
lspot: True
tau_spot: True

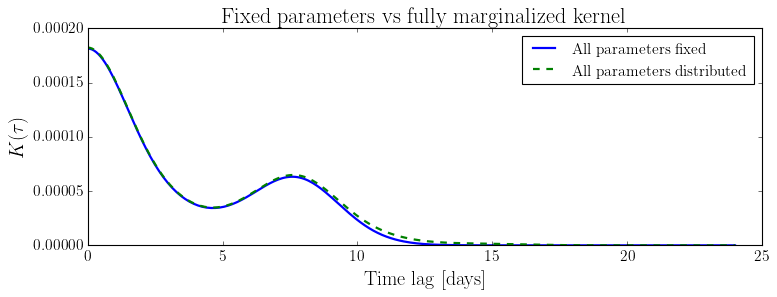

# Compare: all fixed vs all distributed
model_fixed = SpotEvolutionModel(
envelope=TrapezoidSymmetricEnvelope(lspot=10.0, tau_spot=3.0),
visibility=VisibilityFunction(peq=8.0, kappa=0.2, inc=np.pi / 3),
sigma_k=0.01,
)
lag = np.linspace(0, 3 * 8.0, 300)
K_fixed = np.array(AnalyticKernel(model_fixed).kernel(lag))
K_all = np.array(AnalyticKernel(model_all).kernel(lag))
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(lag, K_fixed, label="All parameters fixed", lw=2)
ax.plot(lag, K_all, "--", label="All parameters distributed", lw=2)
ax.set_xlabel("Time lag [days]")
ax.set_ylabel(r"$K(\tau)$")
ax.set_title("Fixed parameters vs fully marginalized kernel")
ax.legend()
plt.tight_layout()
plt.show()
6. Custom distributions#
Subclass ParameterDistribution to define your own. Only support and __call__ are required:
class BetaDistribution(ParameterDistribution):
"""Beta distribution scaled to [lo, hi]."""
def __init__(self, a, b, lo=0.0, hi=1.0):
from scipy.special import beta as beta_func
self.a, self.b = float(a), float(b)
self.lo, self.hi = float(lo), float(hi)
self._B = beta_func(self.a, self.b)
@property
def support(self):
return (self.lo, self.hi)
def __call__(self, x):
t = (x - self.lo) / (self.hi - self.lo)
if t <= 0 or t >= 1:
return 0.0
return t ** (self.a - 1) * (1 - t) ** (self.b - 1) / self._B
def sympy_pdf(self):
import sympy as sp
x = sp.Symbol("x")
a, b = sp.Float(self.a), sp.Float(self.b)
lo, hi = sp.Float(self.lo), sp.Float(self.hi)
t = (x - lo) / (hi - lo)
return t ** (a - 1) * (1 - t) ** (b - 1) / (
(hi - lo) * sp.beta(a, b))
# Use it for lspot: skewed towards shorter lifetimes
lspot_dist = BetaDistribution(a=2, b=5, lo=2.0, hi=15.0)
print(f"Mean lspot: {lspot_dist.mean:.2f} days")
print(f"E[lspot^2]: {lspot_dist.expectation(lambda x: x**2):.2f}")
env = TrapezoidSymmetricEnvelope(lspot=lspot_dist, tau_spot=2.0)
model = SpotEvolutionModel(
envelope=env,
visibility=VisibilityFunction(peq=8.0, kappa=0.2, inc=np.pi / 3),
sigma_k=0.01,
)
K = AnalyticKernel(model).kernel(np.linspace(0, 24, 200))
print(f"Kernel K(0) = {float(K[0]):.2e}")
Mean lspot: 5.71 days
E[lspot^2]: 36.96
Kernel K(0) = 1.05e-04
ldist_eqn = lspot_dist.get_sympy(var_name=r"\ell_{\rm spot}")
Summary#
Feature |
How it works |
|---|---|
|
Fixed amplitude (default, unchanged) |
|
Replaces \(\sigma_k^2\) with \(E[\sigma_k^2]\) (analytic) |
|
Marginalizes \(R_\Gamma\) over lspot via quadrature |
|
Marginalizes \(R_\Gamma\) over tau_spot via quadrature |
Custom |
Implement |
All existing code that passes plain floats continues to work unchanged — floats are internally wrapped as DeltaDistribution with zero overhead.
