Fourier Domain#
The previous tutorial builds intuition in time domain: how individual spots grow, decay, and rotate to produce a lightcurve. This tutorial develops the complementary picture in frequency domain — the power spectral density (PSD) of the GP kernel.
The analytic kernel in time domain is
Taking the Fourier transform, the PSD is
The PSD is therefore a sum of spectral peaks centered at multiples of the rotation frequency \(\omega_0 = 2\pi/P_{\rm eq}\), each smeared by the envelope spectrum \(|\hat{\Gamma}(\omega)|^2\).
This tutorial covers each component:
Envelope spectrum \(|\hat{\Gamma}(\omega)|\): how spot lifetime sets the peak width.
Rotation harmonics \(c_n^2\): how inclination shapes the harmonic amplitudes.
Full analytic PSD: combining both and comparing with simulated lightcurves.
import sys
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.gridspec as gridspec
plt.rcParams.update({
"font.size": 16, # base font size
"axes.titlesize": 20, # axes title
"axes.labelsize": 18, # x/y axis labels
"xtick.labelsize": 14, # x tick labels
"ytick.labelsize": 14, # y tick labels
"legend.fontsize": 14,
"figure.titlesize": 22, # suptitle
})
sys.path.append("../..")
from spotgp import (
TrapezoidSymmetricEnvelope,
VisibilityFunction,
SpotEvolutionModel,
AnalyticKernel,
LightcurveModel,
compute_psd,
)
np.random.seed(42)
1. Envelope Spectrum \(|\hat{\Gamma}(\omega)|\): spot lifetime sets the peak width#
The spot envelope \(\Gamma(t)\) describes how a single spot’s area grows and decays over time. Its Fourier transform \(\hat{\Gamma}(\omega)\) determines the spectral width of each harmonic peak in the PSD — wide peaks come from short-lived spots; narrow peaks from long-lived spots.
The two envelope parameters control the spectrum in distinct ways:
tau_spot\(= \tau\) (rise/decay timescale): a longer \(\tau\) produces a narrower spectral peak, since the spot persists for many rotation periods and the signal is more coherent.lspot\(= \ell\) (plateau duration): adds oscillatory sidelobes to the spectral peak, because the flat-top trapezoid has a sinc-like Fourier transform.

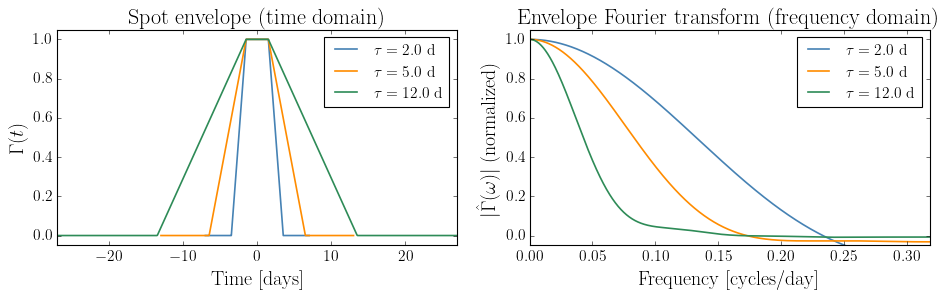

Below we compare the envelope \(\Gamma(t)\) (left) and its Fourier transform magnitude \(|\hat{\Gamma}(\omega)|\) (right) for different values of tau_spot.
lspot = 3.0
tau_vals = [2.0, 5.0, 12.0]
colors = ["steelblue", "darkorange", "seagreen"]
omega = np.linspace(0.0, 2.0, 1000) # rad/day
freq = omega / (2 * np.pi) # cycles/day
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
for tau, c in zip(tau_vals, colors):
env = TrapezoidSymmetricEnvelope(lspot=lspot, tau_spot=tau)
# Time domain
t_max = 2 * tau + lspot
t = np.linspace(-t_max, t_max, 800)
axes[0].plot(t, env.Gamma(t), color=c, label=rf"$\tau={tau}$ d", lw=1.5)
# Frequency domain
Gh = np.array(env.Gamma_hat(omega))
Gh /= Gh.max() # normalize to peak = 1 for visual comparison
axes[1].plot(freq, Gh, color=c, label=rf"$\tau={tau}$ d", lw=1.5)
axes[0].set_xlabel("Time [days]")
axes[0].set_ylabel(r"$\Gamma(t)$")
axes[0].set_title("Spot envelope (time domain)")
axes[0].set_ylim(-0.05, 1.05)
axes[0].set_xlim(-t_max, t_max)
axes[0].legend()
axes[1].set_xlabel("Frequency [cycles/day]")
axes[1].set_ylabel(r"$|\hat{\Gamma}(\omega)|$ (normalized)")
axes[1].set_title("Envelope Fourier transform (frequency domain)")
axes[1].set_ylim(-0.05, 1.05)
axes[1].set_xlim(0, max(freq))
axes[1].legend()
plt.tight_layout()
plt.show()

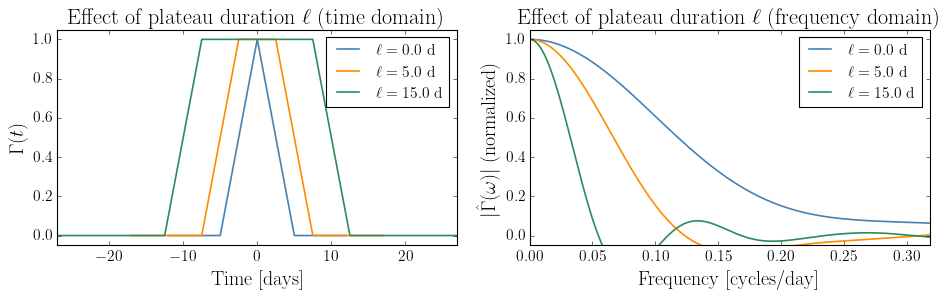

Longer tau_spot compresses the spectral peak — a spot that lives for many rotation cycles produces a more coherent, narrower signal. Now we vary lspot at fixed tau_spot to see how the plateau duration adds sidelobes.
tau_spot = 5.0
lspot_vals = [0.0, 5.0, 15.0]
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
for lspot, c in zip(lspot_vals, colors):
env = TrapezoidSymmetricEnvelope(lspot=lspot, tau_spot=tau_spot)
# Time domain
t_max = 2 * tau_spot + lspot + 2
t = np.linspace(-t_max, t_max, 1000)
axes[0].plot(t, env.Gamma(t), color=c, label=rf"$\ell={lspot}$ d", lw=1.5)
# Frequency domain
Gh = np.array(env.Gamma_hat(omega))
Gh /= Gh.max()
axes[1].plot(freq, Gh, color=c, label=rf"$\ell={lspot}$ d", lw=1.5)
axes[0].set_xlabel("Time [days]")
axes[0].set_ylabel(r"$\Gamma(t)$")
axes[0].set_title(r"Effect of plateau duration $\ell$ (time domain)")
axes[0].set_ylim(-0.05, 1.05)
axes[0].set_xlim(-t_max, t_max)
axes[0].legend()
axes[1].set_xlabel("Frequency [cycles/day]")
axes[1].set_ylabel(r"$|\hat{\Gamma}(\omega)|$ (normalized)")
axes[1].set_title(r"Effect of plateau duration $\ell$ (frequency domain)")
axes[1].set_ylim(-0.05, 1.05)
axes[1].set_xlim(0, max(freq))
axes[1].legend()
plt.tight_layout()
plt.show()
2. Rotation Harmonics \(c_n^2\): inclination shapes the harmonic amplitudes#
The visibility function \(\Pi(t)\) describes how a spot’s projected area changes as the star rotates. Expanded as a Fourier series in the rotation angle, its coefficients \(c_n(\phi)\) determine which harmonics of the rotation frequency appear in the PSD — and with what amplitude.
Key properties:
\(c_0^2\): the DC component. A spot visible at all rotation phases (pole-on star or spot at pole) contributes a flat offset.
\(c_1^2\): the fundamental at \(\omega_0 = 2\pi/P_{\rm eq}\). Dominant for equatorial spots on edge-on stars.
\(c_2^2, c_3^2, \ldots\): higher harmonics. Their amplitudes depend strongly on inclination.

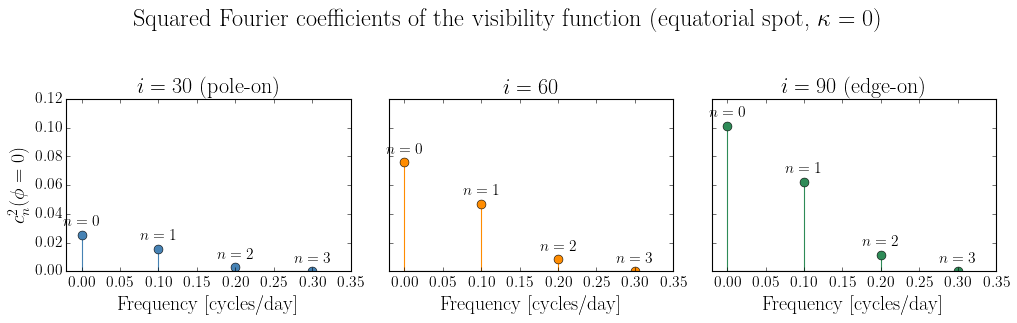

Below we show \(c_n^2\) for an equatorial spot (\(\phi = 0\)) at three inclinations. The harmonic spectrum determines which peaks appear in the full PSD.
peq = 10.0 # rotation period [days]
n_harmonics = 3
ns = np.arange(n_harmonics + 1)
inc_vals = [np.pi / 6, np.pi / 3, np.pi / 2]
inc_labels = [r"$i = 30°$ (pole-on)", r"$i = 60°$", r"$i = 90°$ (edge-on)"]
phi_equator = 0.0
fig, axes = plt.subplots(1, 3, figsize=(13, 4), sharey=True)
for ax, inc, label, c in zip(axes, inc_vals, inc_labels, colors):
vis = VisibilityFunction(peq=peq, kappa=0.0, inc=inc)
cn_sq = np.array(vis.cn_squared(phi=phi_equator, n_harmonics=n_harmonics))
freq_harm = ns / peq # harmonic frequencies [cycles/day]
markerline, stemlines, baseline = ax.stem(
freq_harm, cn_sq,
linefmt=c, markerfmt="o", basefmt="k-"
)
markerline.set_color(c)
markerline.set_markersize(8)
for n, f, val in zip(ns, freq_harm, cn_sq):
ax.annotate(
rf"$n={n}$",
xy=(f, val), xytext=(0, 8), textcoords="offset points",
ha="center", fontsize=14
)
ax.set_title(label)
ax.set_xlabel("Frequency [cycles/day]")
ax.set_xlim(-0.02, (n_harmonics + 0.5) / peq)
axes[0].set_ylabel(r"$c_n^2(\phi=0)$")
fig.suptitle(r"Squared Fourier coefficients of the visibility function (equatorial spot, $\kappa=0$)", y=1.02)
plt.tight_layout()
plt.show()
At \(i = 90°\) (edge-on), the spot disappears behind the star every half-rotation, producing a strong fundamental (\(n=1\)) and visible second harmonic (\(n=2\)). At \(i = 30°\) (nearly pole-on), the spot never fully disappears, so \(c_0^2\) dominates — the variation is mostly a slow modulation, not a periodic dip.
These coefficients weight the spectral peaks in the full PSD: only harmonics with large \(c_n^2\) appear prominently.
3. Full Analytic PSD: combining envelope spectrum and rotation harmonics#
When both components are active, the PSD is an envelope spectrum convolved with a harmonic comb: discrete peaks at \(n\omega_0\) whose widths are set by \(|\hat{\Gamma}(\omega)|^2\) and whose amplitudes are set by \(c_n^2\).
The AnalyticKernel.compute_psd(omega) method evaluates this integral analytically over the latitude distribution. We compare it below against the median PSD estimated from an ensemble of simulated lightcurves — this validates that the analytic formula correctly predicts the frequency-domain behavior of the physical model.
Model setup#
envelope = TrapezoidSymmetricEnvelope(
lspot=5.0, # plateau duration [days]
tau_spot=7.0, # rise/decay timescale [days]
)
visibility = VisibilityFunction(
peq=10.0, # rotation period [days]
kappa=0.0, # solid-body rotation
inc=np.pi / 2, # edge-on inclination
)
model = SpotEvolutionModel(
envelope=envelope,
visibility=visibility,
sigma_k=0.03,
)
kernel = AnalyticKernel(model, n_harmonics=3, n_lat=64)

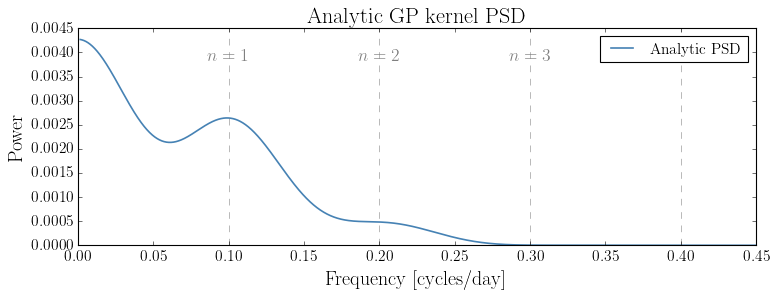

Analytic PSD#
We evaluate compute_psd on a dense frequency grid. The result shows peaks at \(f = n/P_{\rm eq}\) (\(n = 1, 2, 3, \ldots\)) broadened by the envelope spectrum.
peq = model.peq
freq_max = 4.5 / peq # show up to ~4th harmonic
n_freq = 2000
omega_grid = np.linspace(0.01, 2 * np.pi * freq_max, n_freq)
freq_analytic, psd_analytic = kernel.compute_psd(omega_grid)
fig, ax = plt.subplots(figsize=(10, 4))
ax.plot(freq_analytic, psd_analytic, color="steelblue", lw=1.5, label="Analytic PSD")
# Mark harmonic frequencies
for n in range(1, 5):
f_n = n / peq
if f_n <= freq_max:
ax.axvline(f_n, color="gray", lw=0.8, ls="--", alpha=0.6)
ax.text(f_n, ax.get_ylim()[1] * 0.85, rf"$n={n}$",
ha="center", fontsize=16, color="gray")
ax.set_xlabel("Frequency [cycles/day]")
ax.set_ylabel("Power")
ax.set_title("Analytic GP kernel PSD")
ax.legend()
plt.tight_layout()
plt.show()

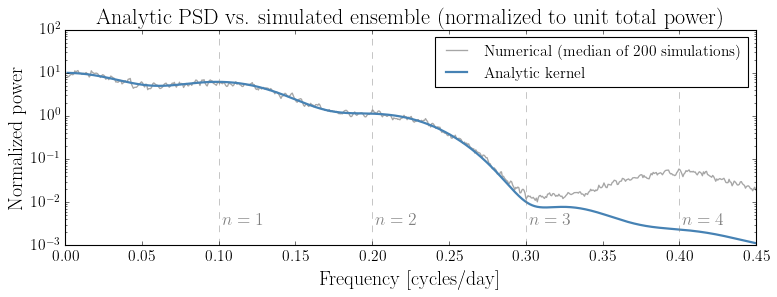

Comparison with simulated lightcurves#
We simulate an ensemble of lightcurves from the same physical model and compute their median Lomb-Scargle PSD. Both PSD curves are normalized to unit total power so their shapes can be compared directly.
# Simulate an ensemble of lightcurves
nsims = 200
nspot = 30
tsim = 300 # days — long enough for good frequency resolution
tsamp = 0.5 # cadence [days]
psd_list = []
for _ in range(nsims):
lc = LightcurveModel.from_spot_model(model, nspot=nspot, tsim=tsim, tsamp=tsamp)
flux = lc.flux
freq_num, power_num = compute_psd(
flux, t=lc.t,
freq_min=0.5 / tsim,
freq_max=freq_max,
normalization="psd",
)
psd_list.append(power_num)
psd_median = np.median(np.stack(psd_list), axis=0)
# Normalize both curves to unit total power for shape comparison
df_num = freq_num[1] - freq_num[0]
df_analytic = freq_analytic[1] - freq_analytic[0]
mask = freq_analytic <= freq_max
psd_num_norm = psd_median / (np.sum(psd_median) * df_num)
psd_analytic_norm = psd_analytic[mask] / (np.sum(psd_analytic[mask]) * df_analytic)
fig, ax = plt.subplots(figsize=(10, 4))
ax.semilogy(freq_num, psd_num_norm, color="gray", alpha=0.7, lw=1.2,
label=f"Numerical (median of {nsims} simulations)")
ax.semilogy(freq_analytic[mask], psd_analytic_norm, color="steelblue", lw=2,
label="Analytic kernel")
for n in range(1, 5):
f_n = n / peq
if f_n <= freq_max:
ax.axvline(f_n, color="gray", lw=0.8, ls="--", alpha=0.5)
ax.text(f_n + 0.002, ax.get_ylim()[0] * 3, rf"$n={n}$",
ha="left", fontsize=16, color="gray")
ax.set_xlabel("Frequency [cycles/day]")
ax.set_ylabel("Normalized power")
ax.set_title("Analytic PSD vs. simulated ensemble (normalized to unit total power)")
ax.legend()
plt.tight_layout()
plt.show()
The analytic kernel reproduces the harmonic peak positions and relative amplitudes of the simulated ensemble. Small residuals at high frequencies reflect finite-sample noise in the median PSD.

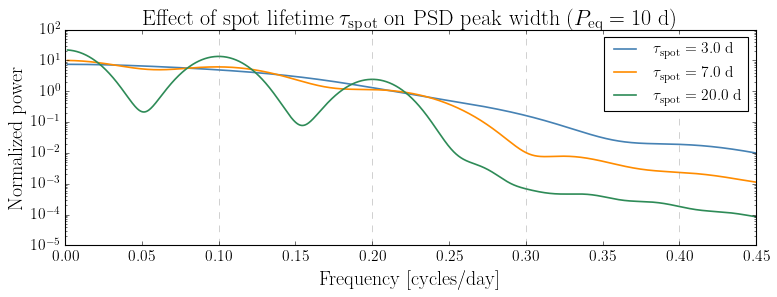

Effect of spot lifetime on spectral peak width#
Shorter-lived spots produce broader harmonic peaks. We demonstrate this by holding the rotation period fixed and varying tau_spot.
tau_vals_psd = [3.0, 7.0, 20.0]
fig, ax = plt.subplots(figsize=(10, 4))
for tau, c in zip(tau_vals_psd, colors):
env_i = TrapezoidSymmetricEnvelope(lspot=5.0, tau_spot=tau)
model_i = SpotEvolutionModel(envelope=env_i, visibility=visibility, sigma_k=0.03)
kernel_i = AnalyticKernel(model_i, n_harmonics=3)
freq_i, psd_i = kernel_i.compute_psd(omega_grid)
psd_i_norm = psd_i / (np.trapezoid(psd_i, freq_i))
ax.semilogy(freq_i, psd_i_norm, color=c, lw=1.5, label=rf"$\tau_{{\rm spot}}={tau}$ d")
for n in range(1, 5):
f_n = n / peq
if f_n <= freq_max:
ax.axvline(f_n, color="gray", lw=0.8, ls="--", alpha=0.4)
ax.set_xlabel("Frequency [cycles/day]")
ax.set_ylabel("Normalized power")
ax.set_title(r"Effect of spot lifetime $\tau_{\rm spot}$ on PSD peak width ($P_{\rm eq}=10$ d)")
ax.legend()
plt.tight_layout()
plt.show()
Short-lived spots (\(\tau_{\rm spot} = 3\) d) produce broad, featureless peaks because each spot coherently contributes for only a fraction of a rotation period. Long-lived spots (\(\tau_{\rm spot} = 20\) d) produce sharp, well-resolved harmonic peaks because each spot rotates many times before decaying.
This spectral peak width is a direct observable: fitting the PSD constrains both the rotation period (peak position) and the spot lifetime (peak width) simultaneously.
